STATION SCHEMATICS - STRUCTURE
FIELD STATION OVERVIEWSTRUCTURE (v.2) | THE STATION'S SKELETON

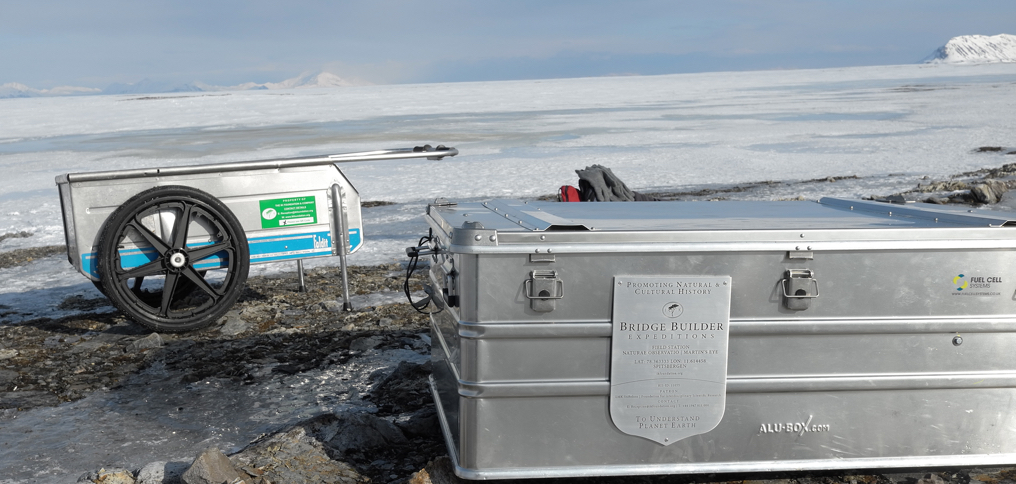

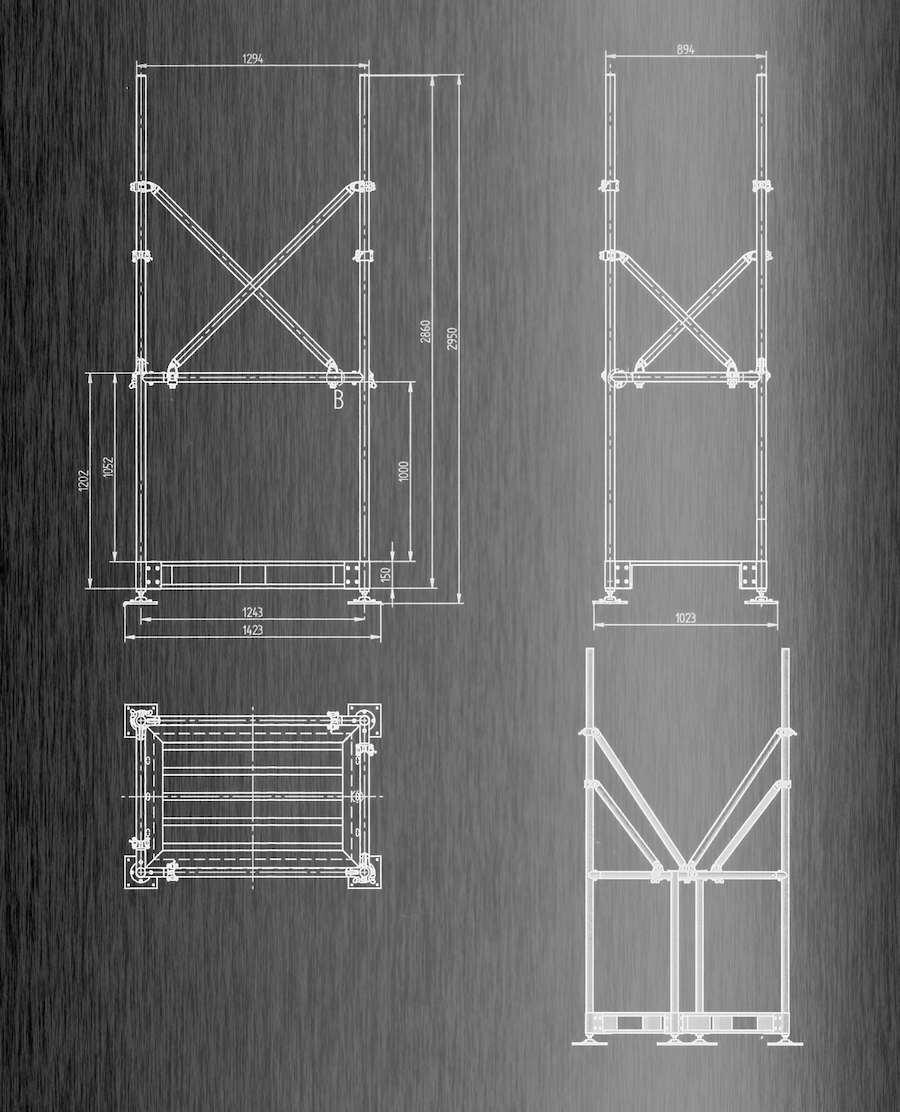

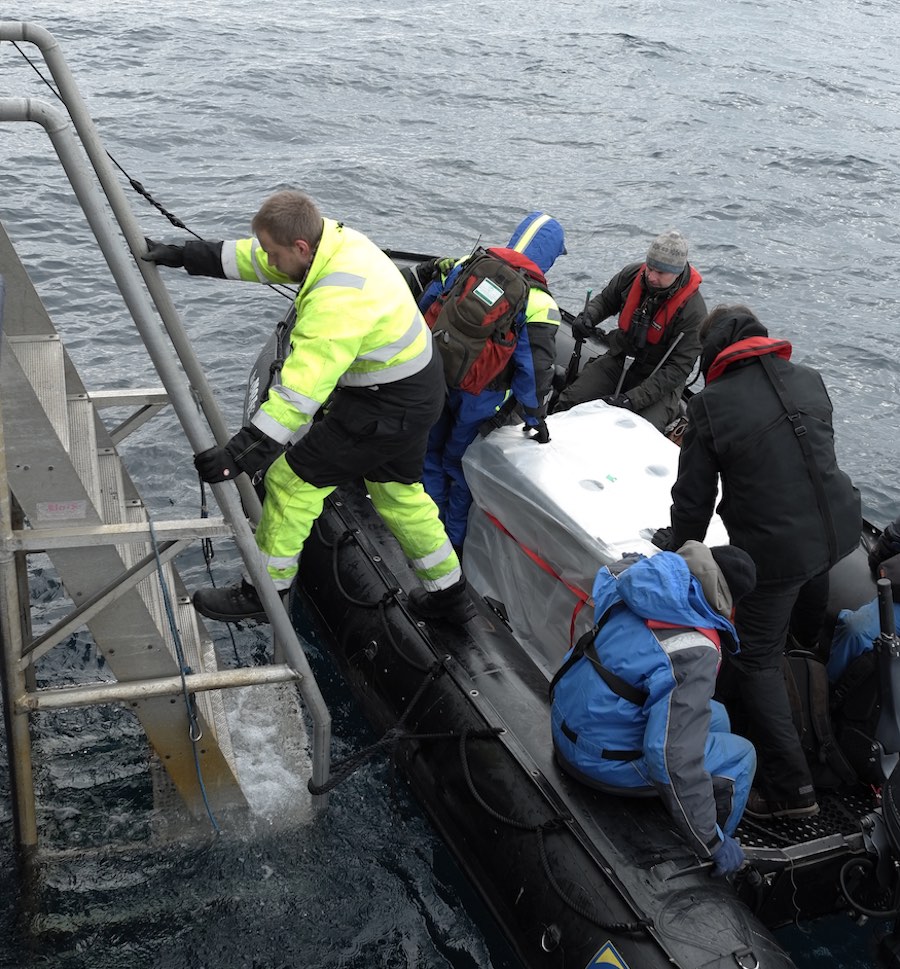

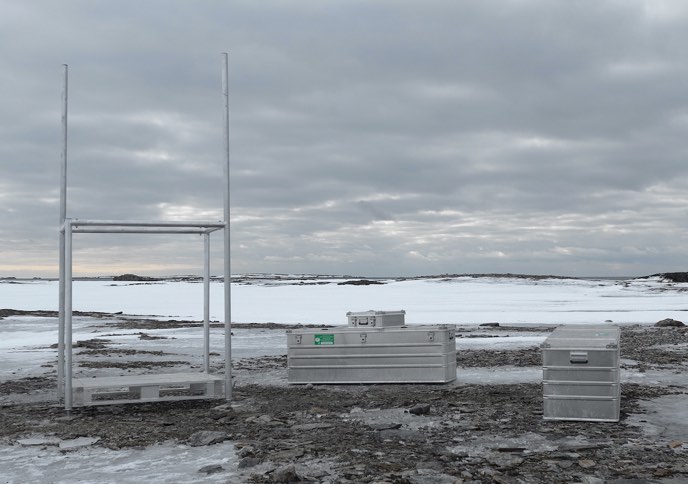

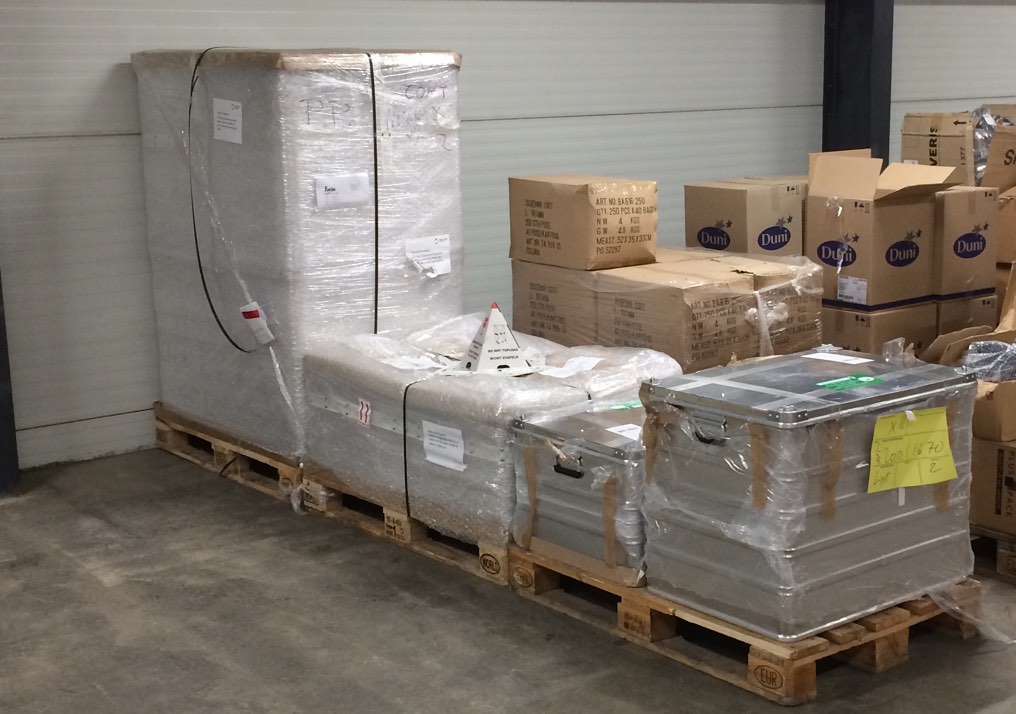

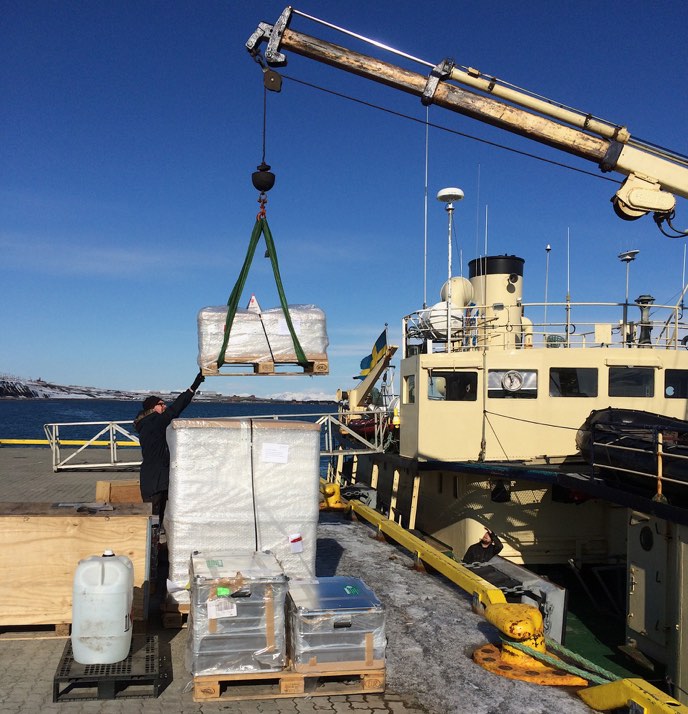

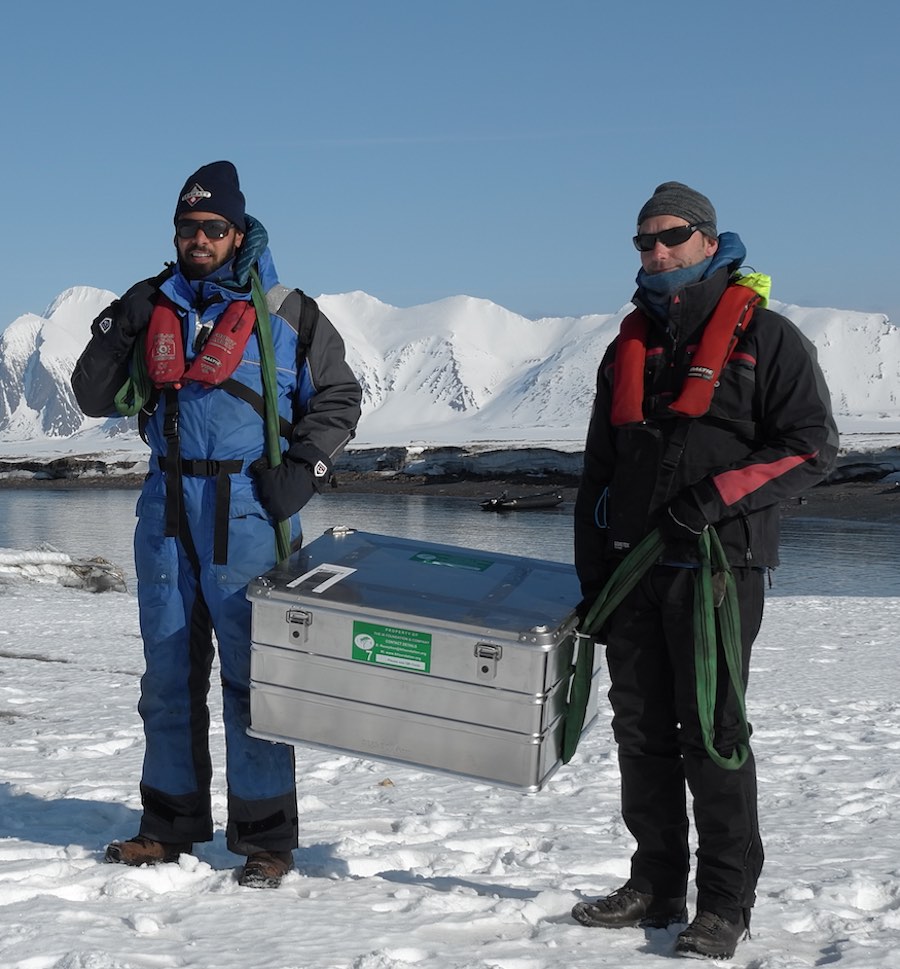

The Field Station is built and integrated into a lightweight transportable pipe skeleton – where clamps are used to connect the piping parts – and box system of steel and aluminium. The same boxes are also used for transport of various parts of instruments and apparatus for the Field Station. Every separate transportable unit is adjusted in size, to be able to be transported in a protected and safe way from or to vehicles, planes and boats as well as when being handled manually during fieldwork.

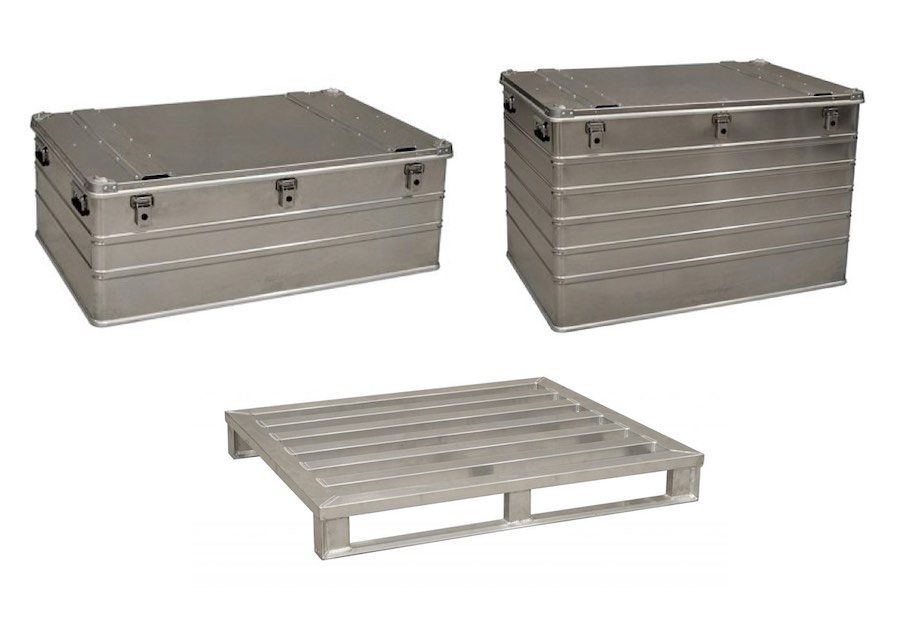

The aluminium boxes are made to IP54 standard, have strong stainless steel locks and hinges, spring handles and a rubber gasket. The boxes have extra sealing in joints and are fitted with extra strong corners, which makes it easy to stack safely during transport. Boxes are adjusted to Euro-pallets ground measurement.
Width: 78 cm
Height: 42 cm
Weight: 14,2 KG
Volume: 350 l
Max load: 200 KG
Width: 78 cm
Height: 75 cm
Weight: 18,2 KG
Volume: 690 l
Max load: 200 KG
ALUMINIUM PALETTE -
Size: 120 x 80 x 15 cm
Working load of 1.000 kg
TOP BOX
Length: 118 cmWidth: 78 cm
Height: 42 cm
Weight: 14,2 KG
Volume: 350 l
Max load: 200 KG
BOTTOM BOX
Length: 118 cmWidth: 78 cm
Height: 75 cm
Weight: 18,2 KG
Volume: 690 l
Max load: 200 KG
ALUMINIUM PALETTE -
THE FOUNDATION
Size: 120 x 80 x 15 cmWorking load of 1.000 kg
PHOTOS: Lars Hansen | Bridge Builder Expeditions Spitsbergen, Voyage IV.A, 2019.
PROJECT GOVERNING
Lars Hansen | The IK FoundationArne Ardeberg | The IK Foundation
PRINCIPAL REFERENCES & RESOURCES
• The IK Foundation Mission Control Centre | Lars Hansen, Jeff Snoxell, Graham Scott • The Governor of Svalbard | Paul Lutnæs, Morten Wedege • LMK-stiftelsen | Foundation for Interdisciplinary Scientific Research | Malin Ferhm • Research & Reception Desk Office at The IK Foundation | Arne Ardeberg, Jennie Asher, Viveka Hansen, Leo RyderSee also LIST OF PARTICIPATORS
